The RAPTOR 180W LED Light Bar features high pressure extruded aluminium housing and high impact polycarbonate lens. The superior optic designs gives a combination beam with both good distance and width from one lamp type. All RAPTOR lamps come complete with easy-adjust mounting bracket. Being manufactured in Australia and covered by a 3 year warranty adds total peace of mind.
Specifications:
| 180W RAPTOR LIGHT BAR SPECIFICATIONS | |
|---|---|
| Wattage | 180 |
| Light Source | 36 x 5w LEDs |
| Light Output – Raw | 21600 Lumens |
| Light Output – Effective | 17300Lumens |
| Voltage | 9-36V |
| Current Draw | 13A @13.5V |
| Operating Temp. | -40 to 80 Deg C |
| Waterproof Rating | IP67 |
| Connector Type | 2 Pin standard Deutsch |
| Housing | Die-Cast aluminium |
| Lens Construction | Polycarbonate |
| Bracket | Stainless Steel |
| Colour | 4000K or 5700K |
| Lifespan | 50,000 Hours |
| Dimensions | 1000 x 51 x 73mm |
| Mounting Suitable | Base and side mount |
| Beams Available | Combo |
| Warranty | 3 Years |
| Part Number | RAP180LB |

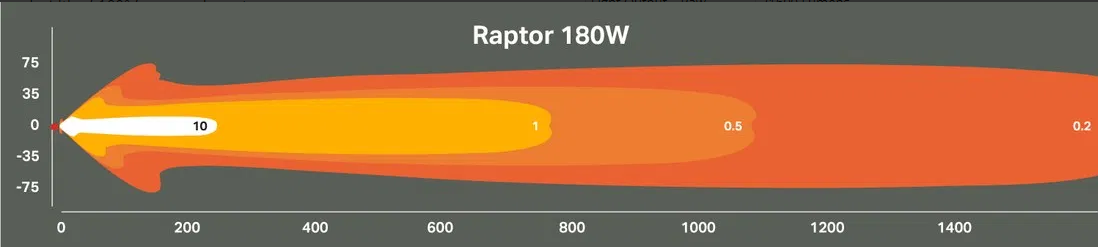

| DISTANCE AT 1 LUX | 768 METRES |
| Brightness Output Watts | 180W |
| Bulb Type | LED |
| IP Rating | IP67 |
| Dimensions (HxWxD) | 1000 x 51 x 73mm |
| Power Consumption | 13 A @ 13.5V |
| Voltage Min | 9V DC |
| Voltage Max | 32V DC |
| Warranty | 3 Years |
