RAP030LBS

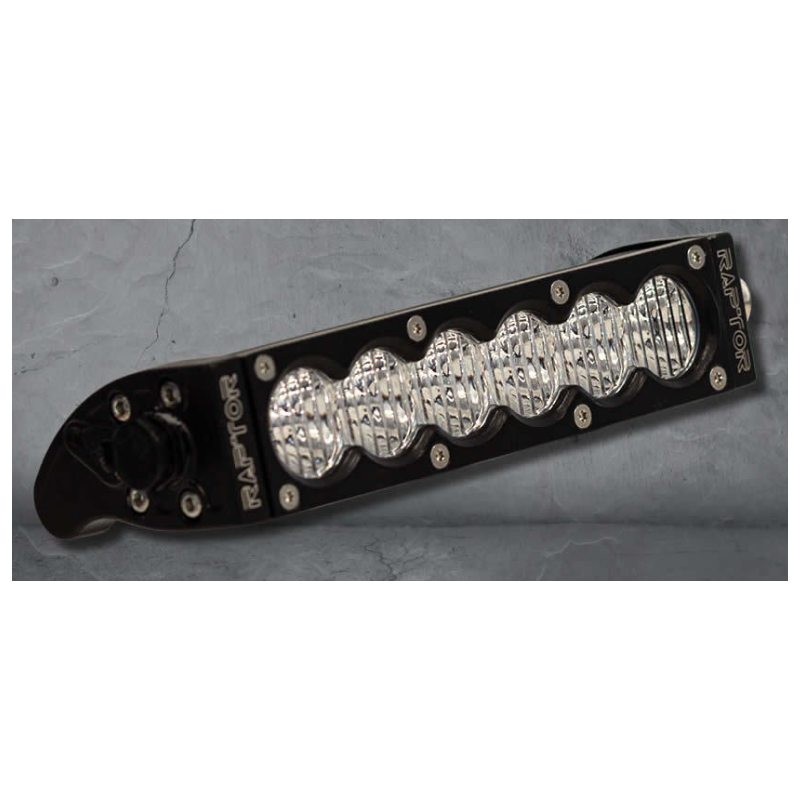

Raptor 30W LED Light Bar Spread RAP030LB
New product
The RAPTOR 30W LED Light Bar Spread features high pressure extruded aluminium housing and high impact polycarbonate lens. The superior optic designs gives a combination beam with both good distance and width from one lamp type. All RAPTOR lamps come complete with easy-adjust mounting bracket. Being manufactured in Australia and covered by a 3 year warranty adds total peace of mind.
Specifications:
| 30W RAPTOR LIGHT BAR SPECIFICATIONS | |
|---|---|
| Wattage | 30 |
| Light Source | 6 x 5w LEDs |
| Light Output – Raw | 3600 Lumens |
| Light Output – Effective | 2895 Lumens |
| Voltage | 9-36V |
| Current Draw | 2.2A |
| Operating Temp. | -40 to 80 Deg C |
| Waterproof Rating | IP67 |
| Connector Type | Deutsch |
| Housing | Die-Cast aluminium |
| Lens Construction | Polycarbonate |
| Bracket | Stainless Steel |
| Colour | 4000K or 5700K |
| Lifespan | 50,000 Hours |
| Dimensions | 240x51x73mm |
| Net Weight | 1.9 kg |
| Mounting Suitable | Base and side mount |
| Beams Available | Combo |
| Warranty | 3 Years |
| Part Number | RAP030LBS |
| DISTANCE AT 1 LUX | 280 METRES |
| Bulb Type | LED |
| IP Rating | IP67 |
| Dimensions (HxWxD) | 240mm x 51mm x 73mm |
| Power Consumption | 2.2A @ 13.5V |
| Voltage Min | 9V DC |
| Voltage Max | 32V DC |
| Warranty | 3 Years |
