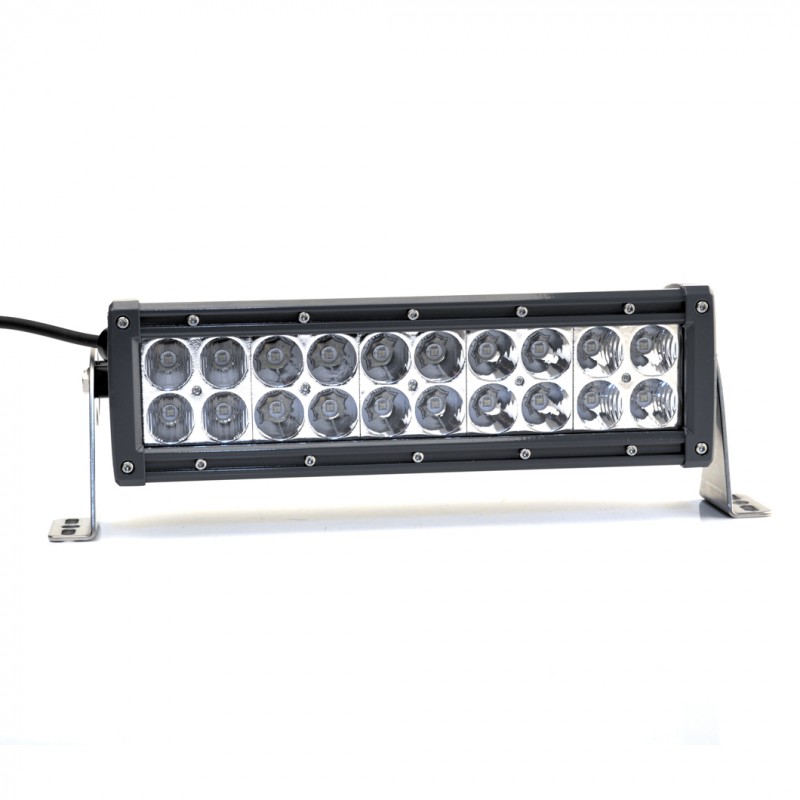

Lightforce Dual Row 10" LED Bar - Combination

New product

$265.00tax incl.

Add to wishlist

The Lightforce┬« 10" dual row LED light bar is rugged and impact resistant, featuring a hard coated polycarbonate lens for durability and a waterproof rating to IP69K standard. The light bar utilises high output European LEDs tuned within the reflectors to produce unparalleled performance in its class.

The CBLEDBD10C is extruded from aluminium and finished in a UV resistant anodised coating allowing it to face some of the harshest conditions in the world.


  • Extruded 6063 aluminium body with black anodized coating
  • IP69K rated to protect against moisture / contaminant ingress
  • Hard coated impact and scratch resistant polycarbonate lens
  • Custom fabricated dual injected moulded strain relief connector, fitted to military specification grade cable
  • Genuine Gore┬« waterproof membrane with mechanical seal
  • Submersible to 3 meters / 9 feet
  • Deutsch waterproof connectors
  • Pulse width modulation thermal management circuitry
  • Over, under and reverse voltage protection
  • Electromagnetic (EMC) and radio frequency (RFI) interference circuitry
  • Stainless steel brackets and mounting hardware
  • Comprehensive wiring harness
  • Broad operating voltage range of 10~36 volts
  • RoHS certified
  • 3 year warranty
  • Combination reflectors


  • LED quantity: 20 pieces
  • Raw wattage: 100W
  • Effective lumen output: 3016
  • Raw lumens: 5600
  • Input wattage: 48W
  • Amp draw 3.6 @ 13.2V
  • Distance to 1 LUX: 327m
  • Input cable length: 450mm (17.72")
  • Wiring harness length: 2.5m (92.43")
  • Weight: 1.81kg (4lbs)


  • 2 x Stainless steel brackets
  • Stainless steel mounting hardware, side bracket, torx fitting and key
  • Full wiring harness (relay, switch connector)
  • User instructions

Lightforce® accessories available: slide mounts and O-bracket kits (in pairs)

Bulb TypeLED
IP RatingIP69K
AccessoriesStainless steel mounting brackets, stainless steel mounting hardware, side bracket, torx fixing and key, full wiring harness, installation instructions
Distance in Meter @ 1 Lux327m
FeatureBroad operating voltage range of 10 ~ 36 volts
FeatureSubmersible to 3 meters
FeatureCombination reflectors
Power Consumption3.6 Amps @ 13.2V
