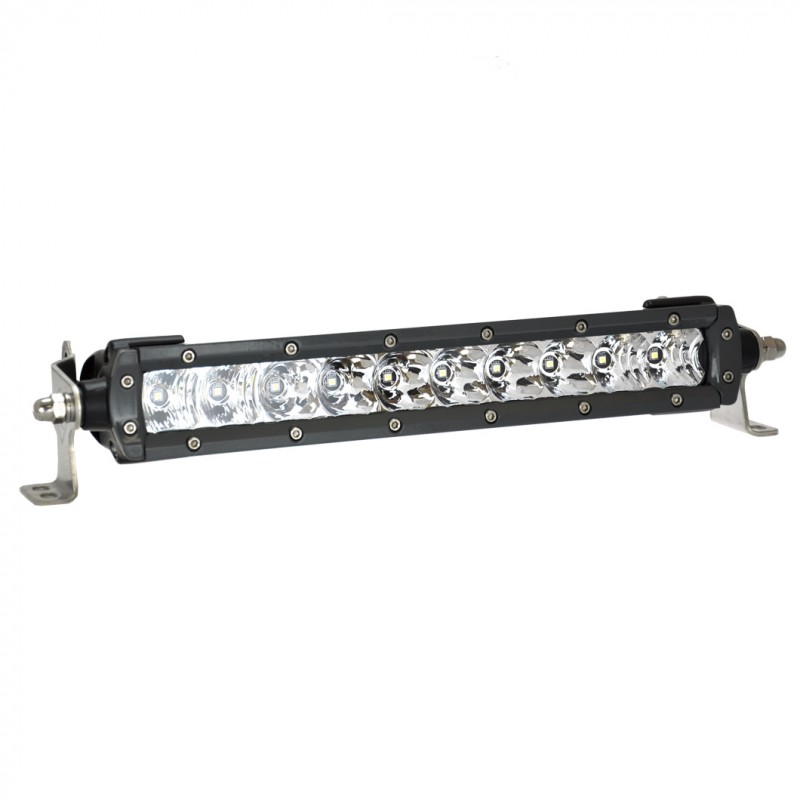

The Lightforce 10" single row LED light bar is rugged and impact resistant, featuring a hard coated polycarbonate lens for durability and a waterproof rating to IP69K standard. The light bar utilises high output European LEDs tuned within the reflectors to produce unparalleled performance in its class.
The CBLEDB10F is extruded from aluminium and finished in a UV resistant anodised coating allowing it to face some of the harshest conditions in the world.
FEATURES:
- Extruded 6063 aluminium body with black anodized coating
- IP69K rated to protect against moisture / contaminant ingress
- Hard coated impact and scratch resistant polycarbonate lens
- Custom fabricated dual injected moulded strain relief connector, fitted to military specification grade cable
- Genuine Gore® waterproof membrane with mechanical seal
- Submersible to 3 meters / 9 feet
- Deutsch waterproof connectors
- Pulse width modulation thermal management circuitry
- Over, under and reverse voltage protection
- Electromagnetic (EMC) and radio frequency (RFI) interference circuitry
- Stainless steel brackets and mounting hardware
- Comprehensive wiring harness
- Broad operating voltage range of 10~36 volts
- RoHS certified
- 3 year warranty
- Flood reflectors
SPECIFICATIONS:
- LED quantity: 10 pieces
- Raw wattage: 50W
- Effective lumen output: 2072
- Raw lumens: 2800
- Input wattage: 45W
- Amp draw 3.4 @ 13.2V
- Distance to 1 LUX: 202m
- Input cable length: 450mm (17.72")
- Wiring harness length: 2.5m (92.43")
- Weight: 0.77kg (1.7lbs)
KIT INCLUSIONS:
- 2 x Stainless steel brackets
- Stainless steel mounting hardware, side bracket, torx fitting and key
- Full wiring harness (relay, switch connector)
- User instructions
Lightforce accessories available: slide mounts and O-bracket kits (in pairs)
| Bulb Type | LED |
| IP Rating | IP69K |
| Accessories | Stainless steel mounting brackets, stainless steel mounting hardware, side bracket, torx fixing and key, full wiring harness, installation instructions |
| Distance in Meter @ 1 Lux | 202m |
| Feature | Broad operating voltage range of 10 ~ 36 volts |
| Feature | Submersible to 3 meters |
| Feature | Flood reflectors |
| Power Consumption | 3.4 Amps @ 13.2V |
| Warranty | 3yrs |
| Weight | 0.77kgs |
