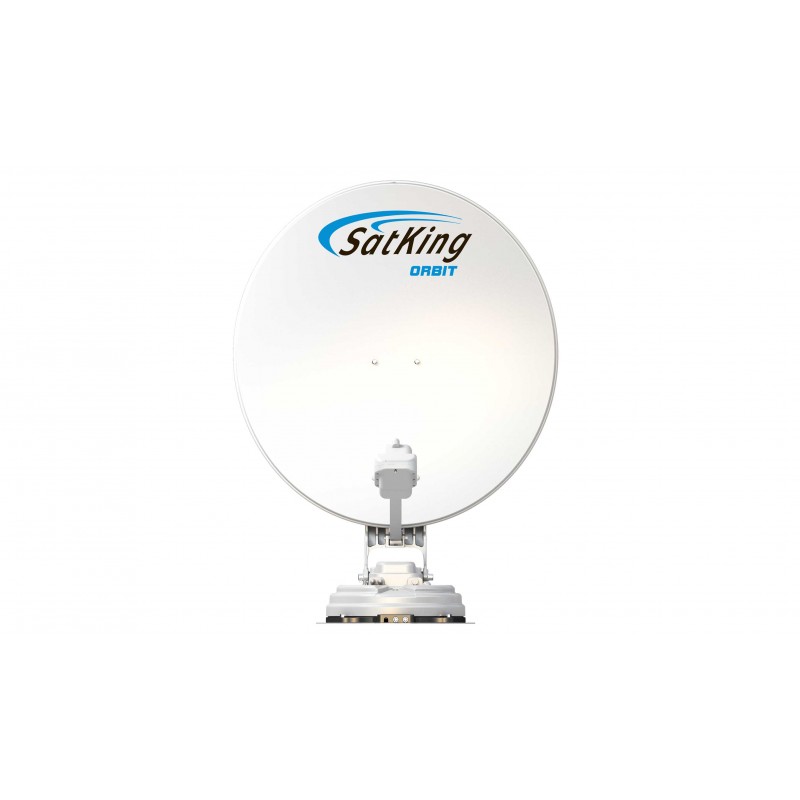

Satking Orbit Automatic Satellite TV Dish

Special Order (not in stock)

New product

$2,295.00

-$150.00

$2,145.00tax incl.

Reduced price!


The SatKing Orbit is fully automatic and has a 85CM high gain dish to provide coverage for VAST & Foxtel Australia wide. The Orbit uses GPS so the unit already knows the current location for setting elevation and skew, making alignment extremely fast.

The Orbit has dual output LNB as standard and is suitable for VAST, Foxtel and Foxtel IQ.  The unit is already high definition MPEG4 so as TV networks change to MPEG4 HD the Orbit will be unaffected.

The SatKing Orbit is designed in Australia and built for harsh Australian conditions, it’s rugged, well made with all metal drive gears. This unit is perfect for travelling off the beaten track.

Even with the low cost the Orbit is still made for harsh Australian conditions and is fully backed with a 2 year Australian warranty. Technical assistance is provided via a 1300 helpline to assist you on your travels.  All technical assistance for the Orbit is handled by SatKing.


Looking for a good satellite antenna that’s going to work in the farther parts of Australia and remote locations then the SatKing Orbit is the perfect choice for your Caravan or Motorhome, check out the incredible features.

Features:

  • 85cm High Gain Dish
  • VAST & Foxtel Compatible
  • Fully Automatic Self Aligning
  • Easy to Use
  • Built in 24CH GPS to Find Satellites Fast
  • Australia-Wide Coverage
  • 2 Year Warranty
  • Dual Output LNB as Standard to Suit Twin Tuner STB’s
  • Suits both Caravans and Motorhomes
  • Automatic LNB Skew
  • Powerful DC Motors with Metal Gearing
  • Weatherproof Construction
  • Made for Harsh Australian Conditions
  • MPEG4 HD Compatible
  • Easy Installation
  • 1300 Number Help Line
  • Designed in Australia


Technical Specifications:

Physical Specifications

Dish Dimensions: 86.0 w x 91.0L cm

Physical Dimensions: 110.6(L) x 86.0(W) x 18.4(H) cm / 15.1 kg

Product Weight: 13.8kgs

Gift Box Weight: 15.1kgs

Operating temperature range: -20°C ~ +60°C


LNB

Polarization: Horizontal/vertical

Dual Output Wideband: Dual Output

LNB Input Frequency10700

LNB output: Dual Output

LNB input frequency: 11.75-12.75GHz

LNB Output Frequency: 1000 - 2050 MHz


Antenna Adjustment Range

Elevation: 0°-145°

Azimuth: 390°

Skew: -60° ~+60°


Satellite Searching Time

Searching time: 80 Seconds (Average)


Power

Voltage Range: 10.5-16V

Input Voltage: DC 12

Consumption: 60 Watts in Search Mode - 4W Standby Mode


Coverage:

The Orbit has recently had a coverage area upgrade for VAST Satellite TV and Foxtel Satellite TV around Australia, please click to see the Pro Max Coverage Map.


To download brochure click here .

To download manual click here .

Dimensions (HxWxD)Dish Dimensions: 86.0 w x 91.0L cmPhysical Dimensions: 110.6(L) x 86.0(W) x 18.4(H) cm
FeatureFully Automatic Self Aligning
FeatureVAST & Foxtel Compatible
FeatureAustralia-Wide Coverage
Power Consumption60 Watts in Search Mode 4W Standby Mode
Voltage Min10.5V
Voltage Max16V
Warranty2 Years
Weight13.8kg
