The RAPTOR 60W LED 170mm Driving Lights feature a high pressure die-cast aluminium housing and high impact polycarbonate lens. The superior optic designs gives a combination beam with both good distance and width from one lamp type. All RAPTOR lamps come complete with a protective lens cover and easy-adjust mounting bracket. Being manufactured in Australia and covered by a 3 year warranty adds total peace of mind.
Specification:
| SPECIFICATIONS | Raptor 60W | Raptor 110W |
| Wattage | 60W | 110W |
| Light Source | 12 x 5W | 19 x 6W |
| Light Output – Raw | 7600 Lumens/lamp | 13500 Lumens/lamp |
| Light Output – Effective | 6088 Lumens/lamp | 12180 Lumens/lamp |
| Voltage | 9-36V | 9-36V |
| Current Draw | 4.5A @ 13.5V | 8.3A @ 13.5V |
| Operating Temperature | -40°C to +80°C | -40°C to +80°C |
| Waterproof rating | IP68 | IP68 |
| Connector Type | 2 Pin standard Deutsch | 2 Pin standard Deutsch |
| Housing | Die-Cast aluminium | Die-Cast aluminium |
| Lens Construction | Polycarbonate | Polycarbonate |
| Bracket | Stainless Steel | Stainless Steel |
| Beam Colour | 4000K or 5700K | 4000K or 5700K |
| Lifespan | 50’000 Hours | 50’000 Hours |

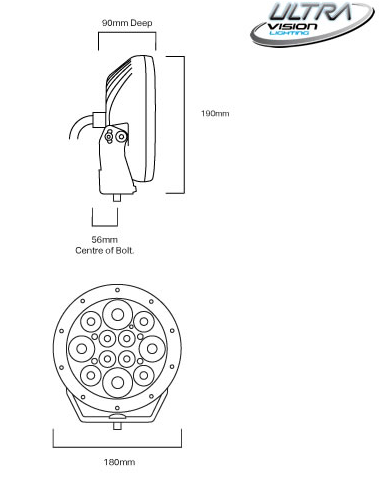

| Diameter | 170mm | 220mm |
| Net Weight | 2.3kg | 3.2kg |
| Beams Available | Combo | Combo |
| Warranty | 3 Years | 3 Years |
| Hi/Lo Wiring Harness & Anti-Theft nuts included | Yes | Yes |
| PART NUMBERS | ||
| Combo Beam | RAP065DL | RAP115DL |
| Brightness Output Watts | 60W |
| Bulb Type | LED |
| Lens Size mm | 170 |
| Feature | Combination Beam |
| Power Consumption | 4.1A @ 13.5V |
| Voltage Min | 9V DC |
| Voltage Max | 32V DC |
| Warranty | 3 Years |
| Weight | 2.3 kg |
