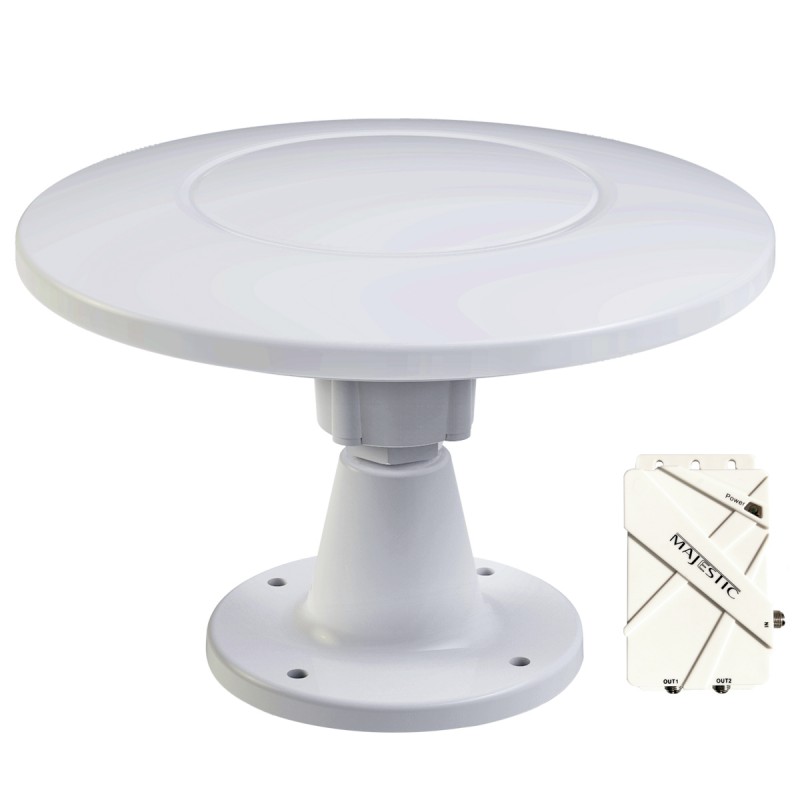

With technology improving at a rapid pace, and the digital TV roll out, Majestic knew it was time to redevelop the UFO TV antenna and bring the latest in state-of-the-art technology to a new model. The Majestic UFO X Marine TV Antenna is the new replacement to the famous UFO which was over 10 years old in technology and was known globally as the ultimate Marine Antenna with its high gain and compact size. Ensuring size and performance were the most important factors the Majestic engineering team developed the UFO X to be perfectly matched with the Majestic range of TV and give you the ultimate in performance especially when you are in fringe areas. You won’t find a company that develops their own TV antenna and TV which are perfectly tuned to give you the performance needed when you are in fringe areas such as boating or in the RV industry.
Supplied with a Junction Box for hidden installation.
Size: The Majestic UFO X has had a major facelift with the redesign of the technology use in the internal electronics and the case design. These technical advances have allowed the Majestic UFO X Marine TV Antenna to be smaller than the previous UFO model. The UFO was 30cm (10”) in diameter, the new UFO X is supporting an improved reduced size of 27cm (9”) in diameter and it is more powerful than the previous model.
Gain: Firstly the main engineer improvement is the High Gain of the UFO X which is at 30dB versus the previous model at 28dB. The UFO X has a 30dB High Gain Amplifier built into the Antenna which is a 58% increase in signal performance on the UFO. (For every 3dB Gain the signal level doubles). This gives you a huge advantage over other TV antennas because now you have a very strong signal in the antenna that has not had any interference being induced when it received the signal, and with a very strong signal being sent down the cable, the electrical interference is insignificant compared to the strong signal. Once the signal is sent down to the junction we do not need to do any filtering or cleaning to give you excellent digital reception.
Vertical and Horizontal: The UFO X has had a vertical and horizontal plane incorporated to give you the performance needed in both Vertical and Horizontal locations. This feature is rarely found in TV Antennas as most are either designed to work in a Vertical or Horizontal application. For those that are looking for a TV antenna that can perform world-wide covering both vertical and horizontal, digital and analog signals then the Majestic UFO X Marine TV Antenna is the ultimate choice.
SNR: Signal to Noise Ratio. This is one of the most important factors of a TV Antenna which has an amplifier. The lower the signal to noise ratio the better the amplifier performs. Basically we are comparing Signal vs Noise. The more signal we have and the less noise we have the better the amplifier works. The UFO X uses state-of-the-art-technology to produce a very low a signal to noise ratio of 3dB which is extremely low compared to most other brands. This means that more signal is amplified and less noise is amplified, which in turn means better performance. This also significantly improves distance performance, as the further you get the signal is weaker, and the noise of electrical interference, other noise still remains high, so the UFO X Amplifier is able to clean the signal and give you exceptional performance.
Ground Independent: The UFO X is also designed to be ground independent (does not need a ground plane or be grounded) to amplify the TV signal. This design is very specific as most installations do not allow for a proper RF Ground, which is totally different to an electrical ground. This is another brilliant engineering design by Majestic to make this antenna perfect for boats or any non-metal roof installation.
Lighting: One of the most important features of the old UFO was the red light Majestic had on the Antenna and Junction box, this allowed for easy fault finding. The UFO X has been upgraded, and the Majestic engineering team have done some major changes in the lighting too. When the UFO X antenna is powered up through the junction box, there are two lights which light up. The junction box has its own Green LED light to indicate that there is power getting to the junction box. Then the UFO X has a Bright Blue light which shines through the case giving you easy identification that the Majestic UFO X Marine TV Antenna is powered up. These lights are much brighter that what used in the past, and use the same amount of power as the previous versions.
UHF/VHF/FM: The UFO X is capable of receiving signal on different frequencies. Throughout various countries there are UHF and VHF signals for Digital and analog TV, the UFO X can pick them up and integrate the process in the antenna and amplify them and send a nice clean signal down the cable for your TV. But more importantly the UFO X can pick up FM signal and boost this performance. The UFO X Junction box has Two Outputs and you can use one of them for the FM Signal to give you improved radio performance. The two outputs from the junction box incorporate UHF/VHF/FM so it does not matter which port you use for the different devices.
Upgrading: For those wishing to upgrade, the Junctions boxes are fully interchangeable between the Majestic UFO and the Majestic UFO X so therefore you do not need to change the Junction if you upgrade to the UFO X higher performance Antenna.
Performance: The UFO X has been re-engineered using the latest in state-of-the-art technology to allow it significantly outperform the previous UFO Model.
So if you are looking for a high performing TV antenna then the UFO X will give you the Extreme performance you are looking for.
If you need a TV antenna with a grounded system, for example an RV, Motorhome, Caravan, Truck, Bus, Steel or Aluminium Vessel then you need to use the ANTRV01 which is specifically designed for ground dependent installations.
|Inverter Output Watts||30dB Gain|
|Accessories||Junction Box, Power Lead, Connectors, Manual, 10M Cable, Deck Mount|
|Feature||Built in Amplifier in Antenna|
