Lightforce DL230 HTX LED/HID Driving Light Pair

This product is no longer in stock

New product



$1,199.00tax incl.

Reduced price!

Add to wishlist

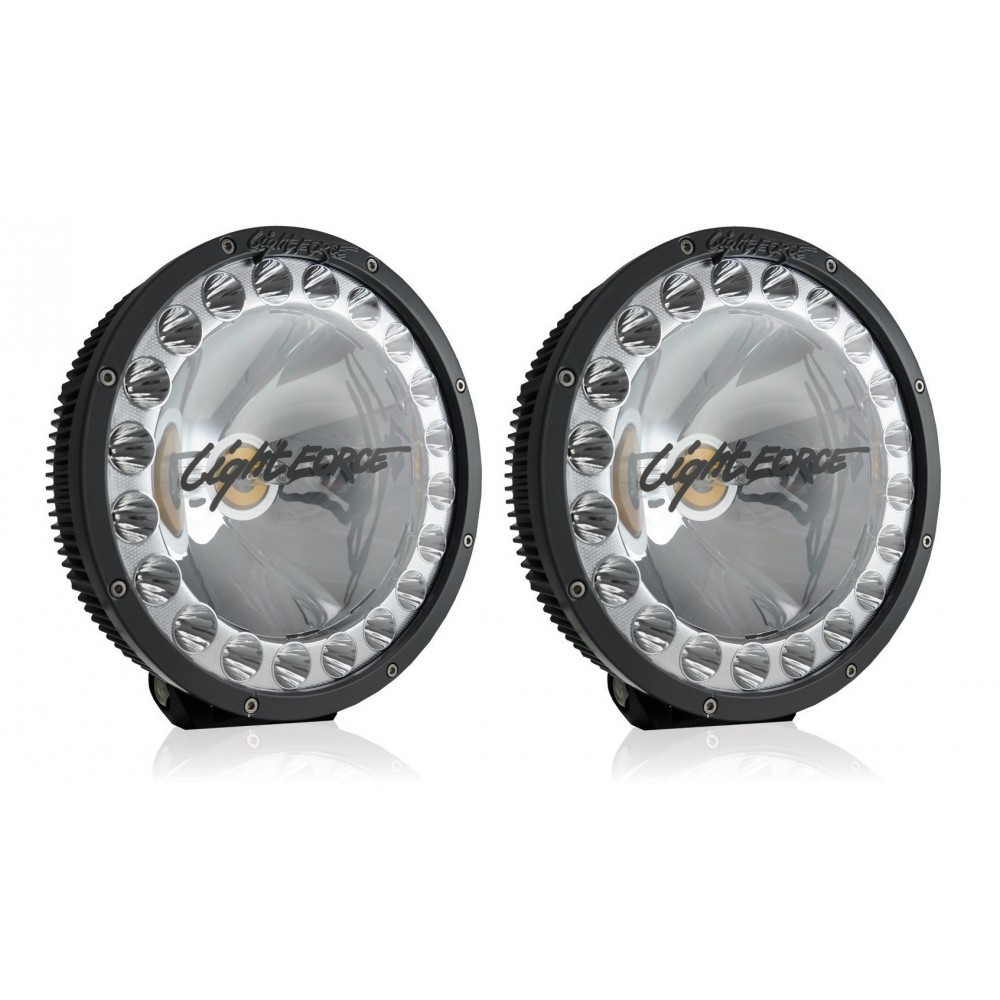

Supplied as a Pair (2 x DL230)

The all new Australian made compact DL230 HTX® by Lightforce® are the ultimate fusion of HID and LED technology, providing the instant flood of LED combined with the unmatched long-distance of HID, eliminating the need for additional spotlights and bars beyond one set of HTX®.

Ideal for any situation where a high performance light is required, DL230 HTX® blows the others away. The Lightforce® DL230 HTX® features a 70w-HID fast start bulb in the centre of a 170mm reflector, providing the ultimate in long distance performance. The reflector is surrounded by 80 watts of LED in a circular pattern, which is equivalent to the spread produced by a standard 20” LED light bar.

Light performance:

LED 1 Lux @ 339M

HID 1 Lux @ 1721M

Combined 1 Lux @ 1768M


  • 70w HID bulb within 170mm reflector
  • 20 x genuine Lumileds LEDs providing flood beam pattern
  • Lightweight glass filled nylon composite housing
  • 6063 extruded aluminium for optimum heat dissipation
  • IP69k rated to protect against moisture / contaminant ingress
  • UV stable hard coated impact resistant polycarbonate lens
  • Stainless steel hardware
  • High current waterproof connector
  • Genuine Gore® waterproof membrane with mechanical seal
  • Over, under and reverse voltage protection
  • Thermal overload protection
  • Australian made
  • 3 year warranty
  • Three mode operation for complete control
    • LED - for instant wide beam
    • HID - for long distance
    • Combine to two for ultimate visibility


  • LED power: 80W
  • HID power: 70W
  • Effective lumens: 8400
  • Input voltage range: 10-16V DC
  • Current draw: 11Amps @ 13.2V
  • LED colour temperature: 5000K
  • Matched HID colour temperature
  • Input cable length: 450mm (17.71")
  • Operating temperature: -40°C to 60°C
  • Weight including bracket: 2.3kg (5.07lbs)
  • Dimensions - 230mm diameter, 111mm depth, 245mm height including bracket

Brightness Output Watts70W
Bulb TypeHydrid HID & LED
Lens Size mm230
AccessoriesMounting bracket, mounting hardware, matching 4 pin waterproof harness adaptor, installation instructions
ColourBlack bezel
Dimensions (HxWxD)230mm diameter, 111mm depth, 245mm height including bracket
Feature70W HID fast start internal blast
Feature80W LED
FeatureFusion of HID and LED technology
Power Consumption11Amps @ 13.2V
Weight2.3kgs including bracket
