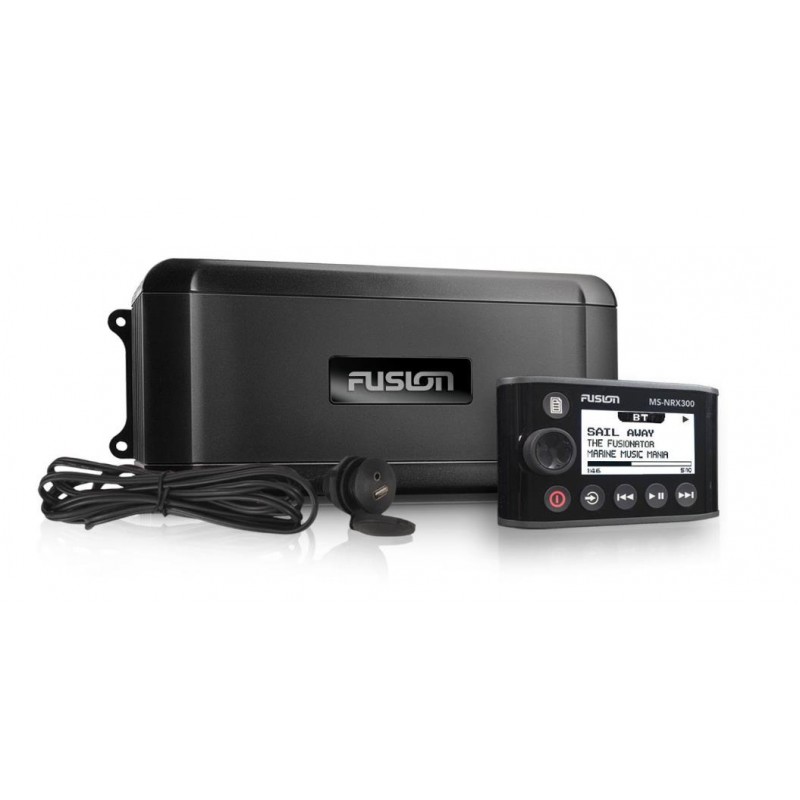

When space is premium at the helm, a compact entertainment solution is needed to blend performance and subtlety. There’s no room for compromise, because every boat needs a Fusion beat. Introducing the fully featured Black Box Entertainment System MS-BB300R, with Fusion-Link™ via NMEA 2000 control, Bluetooth audio streaming and Multi-Zone™ technology. A true ‘plug and play’ compact entertainment powerhouse, the MS-BB300R is compatible with the world’s leading Multi-Function Displays for intuitive True-Marine™ audio playback and easy, total control. The MS-BB300R is an elegant solution for when there’s limited space at the helm.
An MS-NRX300 Wired Remote Control is included for intuitive system navigation, featuring a large LCD display and easy scroll rotary encoder, for a familiar Fusion True-Marine™ experience.
Also included is a combined 3.5mm and USB auxiliary panel mount connector for easy integration of supported devices.
The MS-BB300 and MS-NRX300 are supported by an industry leading 3-Year limited consumer warranty.
Features:
Apple® iOS® and MTP Android™/Windows® media playback – Unparalleled support of the world’s most popular media devices, and the smartest interface for browsing your music library.
A2DP Bluetooth® wireless technology – Stream your family’s favourite soundtrack from any compatible device with track, album and artist info displayed, with navigation available from the MS-NRX300 wired remote or your connected device.
Fusion-Link® control (wired) – Direct stereo control from a compatible Multi-Function Display (MFD) or NRX Series wired remote control is available when utilising an existing NMEA 2000 network. Visit www.fusion-link.com for compatible MFDs.
Multi-Zone™ Technology - Three independent audio zones are available, each with localised menu controls. Multi-Zone Technology includes functions for naming and linking zones, disabling unused zones and setting volume limits. Note: Zone 3 requires additional amplification.
Easy mounting – Simply place, plug and play! All mounting hardware and connection cables are included for effortless installation. A panel mount combined USB and 3.5mm Auxiliary connector is included for simple integration of supported media when the MS-BB300R is mounted out of sight. Note: connecting to an existing NMEA 2000 network requires additional cable CAB000863).
Highly efficient heat sink – A thermal blended heat sink is integrated into the chassis side panel for greater dispersion of heat to increase efficiency and sustain high performance.
For product support click here.
Product Specifications
| Tuner | AM/FM with RDS |
| Audio Zones | 3 Zones (Zone 1 + 2 are powered by internal amplifier, zone 3 requires additional amplification) |
| Nameable Zones | Yes |
| Line Out | 1 (1 x L + R Zone 3, requires amplification) |
| Sub Out | 1 (Zone 3 Line Out) |
| Auxiliary | 2 Stereo Inputs |
| iPod / iPhone | Made for iPod and iPhone |
| F.A.S.T | FUSION Alpha Search Technology Included |
| Display | MS-NRX300 required for display (included) or compatible FUSION-Link Multi-Function Display (not included) |
| NMEA 2000 | NMEA 2000 Certified LEN 1 |
| FUSION-Link | NMEA 2000 Support |
| Audio Track Formats | MP3, M4A and Flac |
Amplifier Specifications
| Amplifier Power | 4 x 50 Watts |
